OCT for Laser Welding

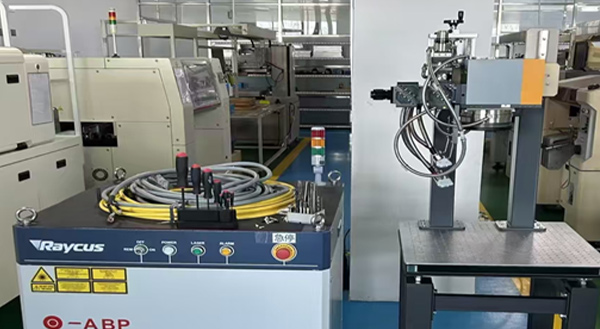

Clairvo WeldSense

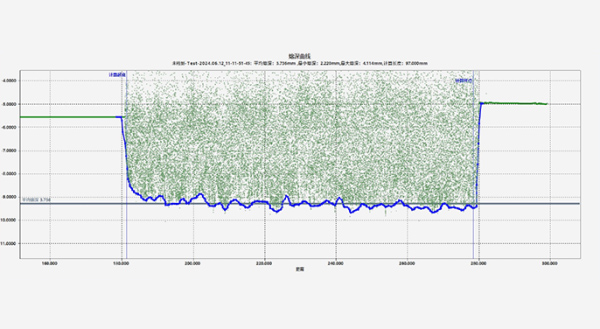

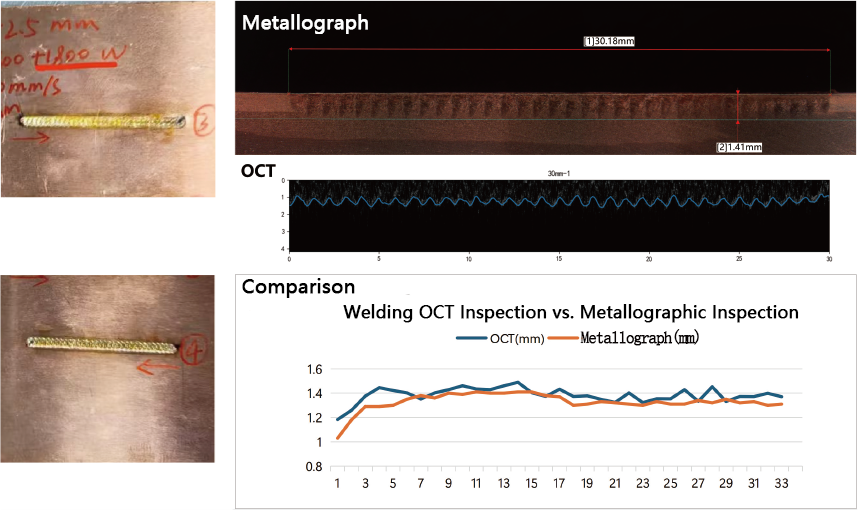

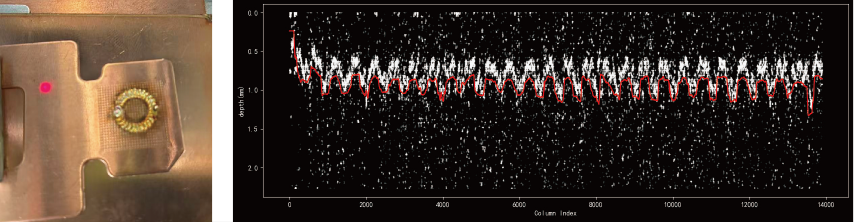

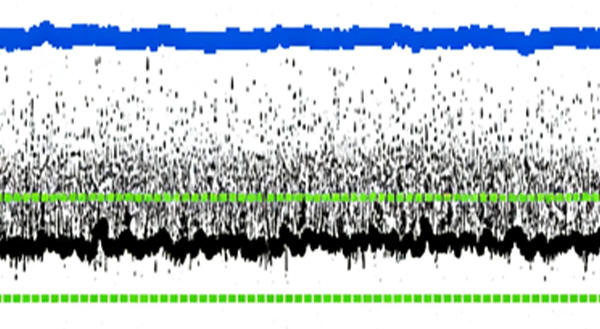

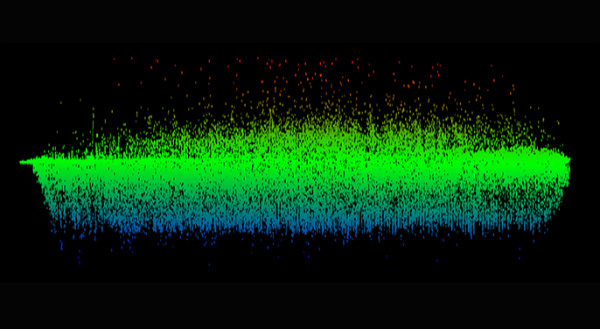

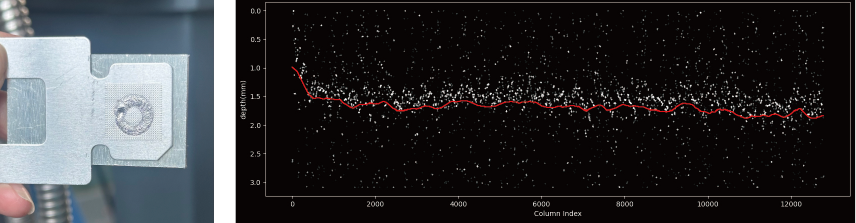

Clairvo WeldSense is an OCT-based real-time laser welding monitoring system developed by Clairvo Medical.Using high-precision low-coherence interferometric measurement, it continuously measures weld keyhole depth and penetration during laser welding of metals including copper, aluminium, and steel.
By integrating welding and penetration detection into a single in-line platform, Clairvo WeldSense provides closed-loop process feed back, ensuring stable welding quality, reduced defect rates, and intelligent manu-facturing control.
产品特点
Core Optical & System Architecture

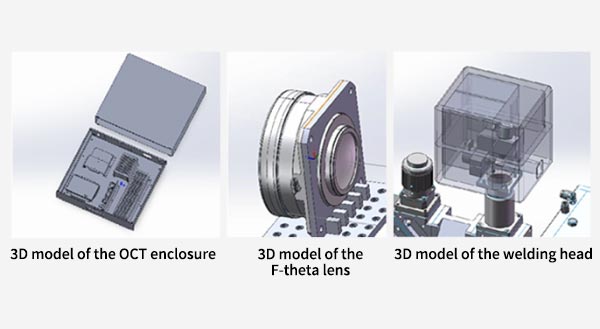

Basic Optical Modules: SLD light source, precision optical-fibre components, motorised reference-arm assembly, and a galvanometer-based welding scanning module form the core optical measurementsystem.
Ultra-Low-Loss Optical Components: High-performance fibre devices minimise transmission loss, maxi-mising energy utilisation and signal efficiency.
Superior Anti-Interference Design: Robust optical and electronic shielding ensures stable measurement performance in harsh laser-welding environments with strong electromagnetic and optical interference.
High Measurement Stability: Precision opto-mechanical design and real-time signal optimisation deliver consistent repeatable, and high-accuracy penetration measurements.
Intelligent Control & Data Integration
Fully in-House Development: Completely independently designed and developed, supporting customised functions to meet specific application requirements.
Coaxial Optical Architecture: Coaxial alignment of the welding laser and OCT measurement beam ensuresprecise targeting and synchronised detection.
Precision Beam Control: Proprietary control technology and self -developed algorithms enable accurate beam steering and high-precision penetration measurement.
Welding Process Modelling: Establishes accurate mathematical models linking welding parameters with penetration depth for quantitative process understanding.
Big-Data Ready Infrastructure: Provides a reliable data foundation for welding big-data analytics, process optimisation and intelligent manufacturing systems.
Flexibility, Software & Usability
Customisable for Specific Applications: The system supports tailored configurations to meet the requirements of diverse welding scenarios and production environments.

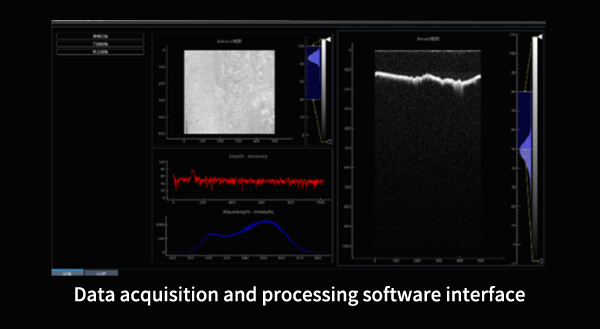

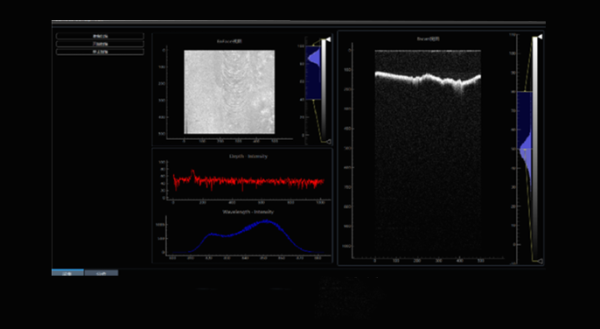

Independently Developed Software Platform: Proprietary welding control and OCT inspection software enable rapid adaptation optimisation, and integration according to user production-line needs.
Simple, Safe, and Reliable Operation: An intuitive user interface and automated process control ensure easy operation, high safety standards, and dependable long-term performance.

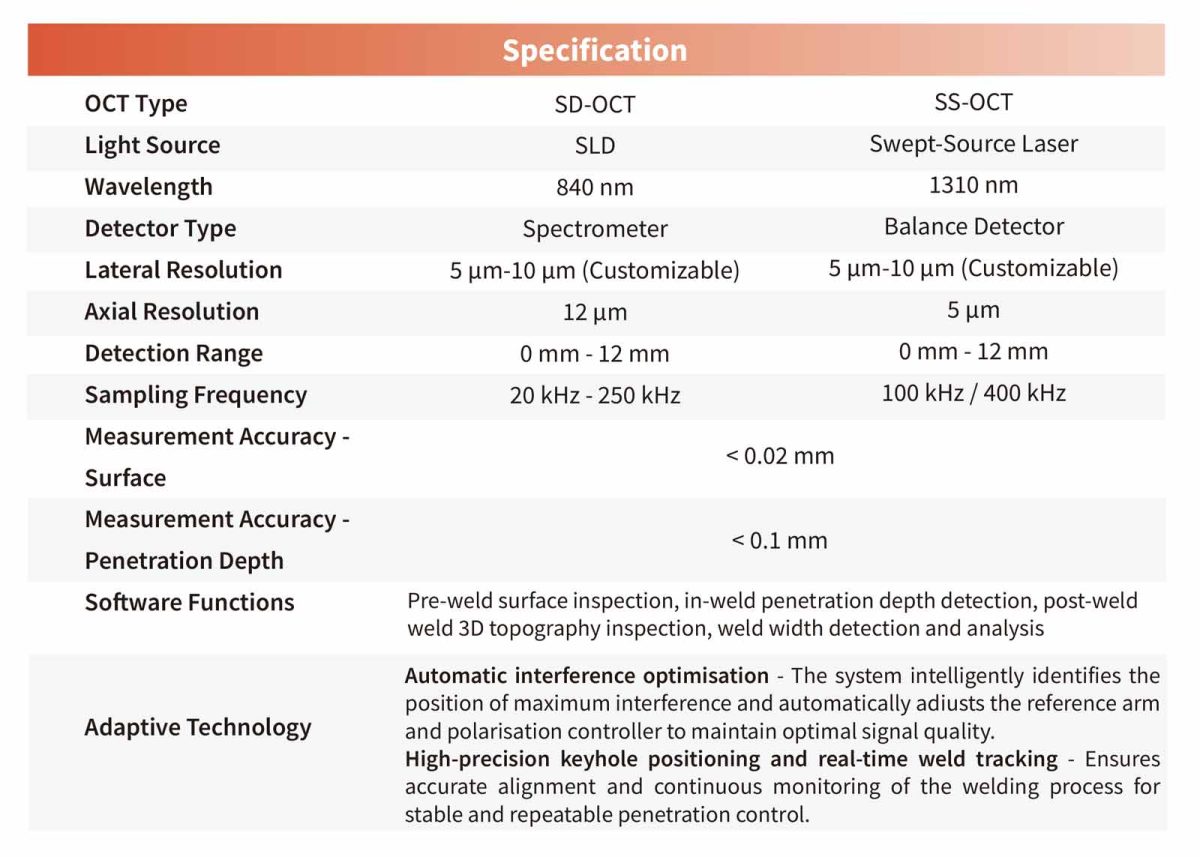

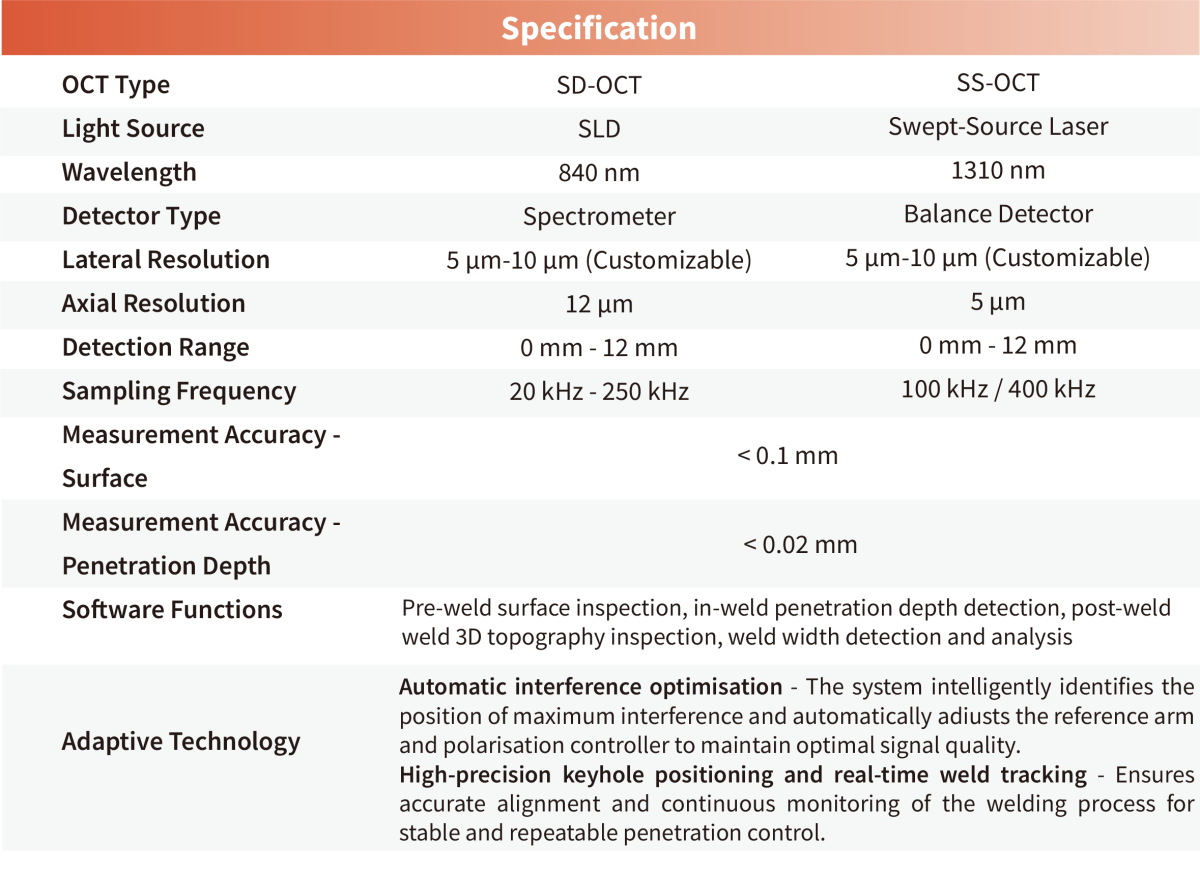

Independently Developed Spectrometer
3D OCT imaging, high SNR, large depth range
High-efficiency VPH grating, diffraction-limited optics
Camera Link/USB 3.0 interfaces
Line scan rate: 20 kHz – 250 kHz
Wavelength: 840 nm +14 nm
Ultra-high sensitivity, excellent roll-off
Imaging depth: >12 mm
