OCT Scanner
OCT Scanner

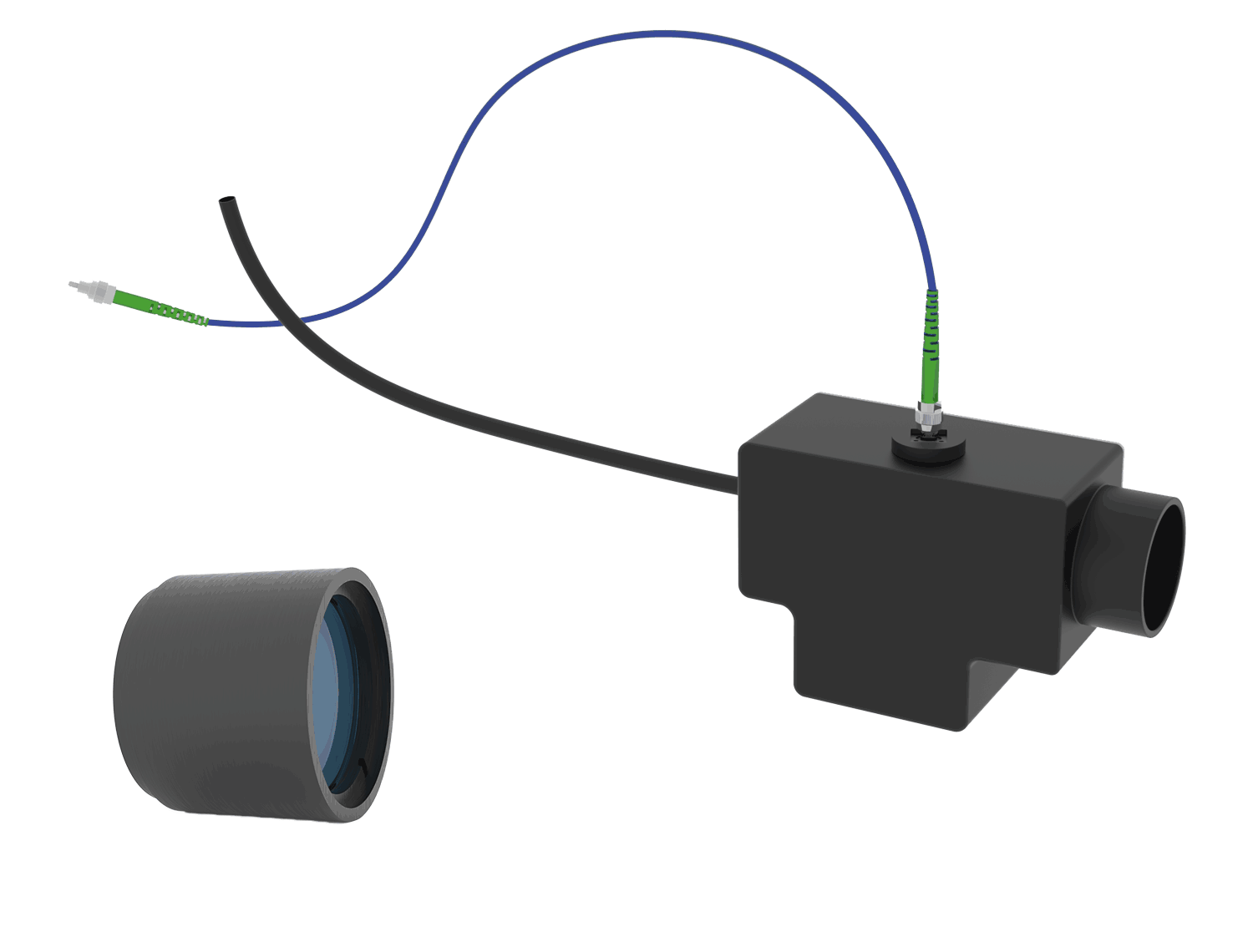

840 nm Handheld OCT Scanner Head
Model：HSC840/10um
OCT Scanning Lens
Model：HSCL840/10um
2D Scanning Galvanometer
Model：XYM8107-AG
The OCT scanning head developed by our company integrates a fibre-optic collimator two-dimensional galvanometer scanner, precision scanning lens assembly, and zoom lens module. This compactoptical unit is designed for seamless integration into optical coherence tomography(OCT) laser scanning imaging systems.The scanning head assembly enables stable, high-speed beam steering and accurate focusing, forming a key component for high-performance OCT imaging platforms in biomedical and industrial applications.
Product Features
Telecentric scanning lenses are critical for OCT and other laser scanning imaging systems, as they produce a flat image plane when the laser beam scans the sample.
Large field-of-view imaging technology achieves imaging of objects within a wide field of view through optical design, image processing and other methods.
Low F-theta distortion produces geometrically corrected images without extensive post-processing.
The combination of the OCT scanning head with custom-built microscopes can significantly expand system functionality.

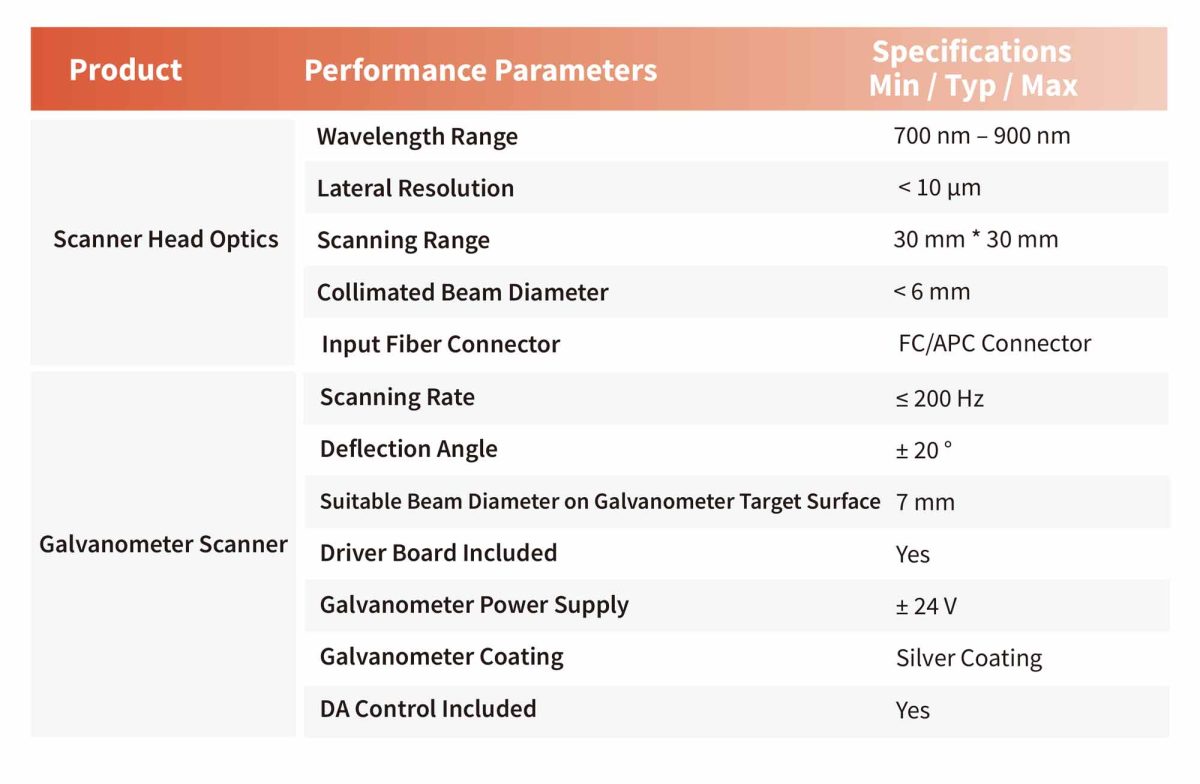

Technical Parameters
